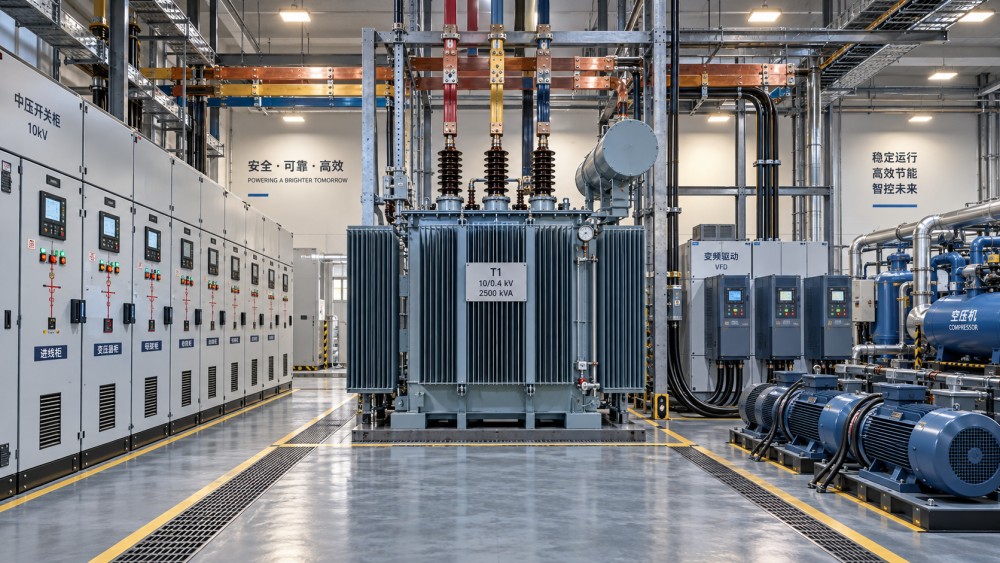

Peak demand is when an industrial electrical system reveals whether its apparent capacity is real resilience. A plant may operate without visible trouble for most of the year, then experience nuisance trips, voltage dips, overheated connections, motor stalls, or a wider loss of supply when several large loads start or process demand rises together. These events are rarely caused by one defective component. More often, they result from small weaknesses that remain tolerable at ordinary loading but interact under thermal, electrical, and operational stress.
For technical evaluation, industrial power system reliability should not be treated as a single availability figure or a nameplate-capacity exercise. It depends on whether the source, transformers, conductors, switchgear, protection settings, controls, and connected loads can remain coordinated through credible peak-load conditions. That includes normal production peaks, motor acceleration, transfer to standby generation, restoration after an outage, and the changing behavior introduced by power electronics and distributed energy resources.
The difficult part is that peak-load failure modes are often hidden by average-demand data. A monthly energy bill can show adequate consumption headroom while offering no indication of a brief but consequential voltage sag, an overloaded bus section, or a protection scheme that loses selectivity during a fault.
The most familiar weakness is inadequate source capacity, but the evaluation should go beyond transformer kVA or generator rating. Peak demand must be assessed at the actual electrical nodes where loads are supplied. A facility may have sufficient incoming capacity while a downstream transformer, feeder, busbar, automatic transfer switch, or motor control center becomes the limiting element.
Load diversity assumptions deserve particular scrutiny. They may have been valid when the installation was commissioned, yet no longer reflect production schedules, added automation cells, electric heating, warehouse charging, or expanded HVAC demand. Simultaneous operation is the issue. When several variable-speed drives ramp at once, compressors reload after a voltage event, and process heating is active, demand can differ sharply from the original load study.
Generator-backed systems need an equally careful review. A standby generator can carry a calculated steady-state load and still struggle with large motor starts, step loading, poor power factor, harmonic current, or the inrush associated with transformer energization. The governor, automatic voltage regulator, generator transient reactance, and load-sequencing logic all affect the response. Rating a generator against a static demand total does not confirm that it can support the process during its most difficult electrical transition.
Thermal limits further complicate the picture. Ambient temperature, enclosure ventilation, cable grouping, harmonic heating, altitude, and contamination can reduce usable equipment capacity. A connection with marginal contact resistance may appear normal at modest load but deteriorate quickly as current and temperature rise. Infrared inspection is useful, but it should be performed under meaningful load conditions and interpreted alongside torque records, joint design, and equipment history.
Voltage instability during peak periods is commonly blamed on the utility supply, although the underlying cause may be inside the facility. Long feeders, undersized conductors, weak transformer impedance choices, overloaded distribution sections, and rapidly changing loads can all magnify voltage deviation at critical terminals. Motors are especially sensitive because reduced voltage can increase current, reduce torque, lengthen acceleration, and raise winding temperature. A voltage dip can therefore trigger a chain reaction: a motor slows, its process load changes, controls reset, and other equipment responds unpredictably.
The relevant question is not simply whether voltage remains “within range” at the incomer. It is whether the supply remains acceptable at the terminals of critical loads during the operating events that matter. This calls for time-based measurement and, where appropriate, power-system studies that model source impedance, transformer taps, motor starting, capacitor switching, and the behavior of electronic converters.
Automatic voltage control can help, but poorly coordinated control can create a different problem. Transformer tap changers, capacitor banks, static VAR equipment, generator AVR controls, and inverter-based resources may respond on different time scales. Without a coordinated control philosophy, the system can hunt, switch excessively, or create voltage changes that disturb sensitive loads.

Modern industrial facilities increasingly rely on variable-speed drives, rectifiers, UPS systems, welding equipment, battery chargers, robotics, and other nonlinear loads. These technologies can improve process control and energy performance, but they also change current waveforms. Harmonic currents may increase losses in transformers and cables, contribute to neutral loading in certain arrangements, interfere with measurement, and stress capacitors.
The highest-risk condition is often not the average harmonic level. It may emerge at a particular load combination, when capacitor-bank steps are connected, a large drive is lightly loaded, or a network configuration changes after maintenance. Resonance between system inductance and power-factor-correction capacitors can amplify specific harmonic orders. When that occurs, repeated capacitor fuse operation or unexplained overheating should not be dismissed as isolated equipment failure.
A sound assessment uses measurements taken during representative production states, not only during a quiet audit window. The applicable limits and assessment method should be selected for the jurisdiction and point of connection. IEC 61000 series documents and IEEE 519 are frequently referenced in harmonic and power-quality discussions, but their use must be matched to the system boundary, contractual requirements, and local utility rules. Applying a familiar standard title without defining the measurement point can lead to the wrong conclusion.
Protection is expected to isolate a fault quickly while preserving supply to unaffected areas. Under peak conditions, however, protection performance can be weakened by outdated assumptions about fault current, transformer configuration, motor contribution, generator operation, or switchgear status. A relay setting that was selective before an expansion may no longer discriminate properly after additional transformers, parallel sources, or distributed generation are introduced.
Both extremes are dangerous. Excessively fast upstream protection can trip a healthy part of the plant for a downstream fault. Overly delayed protection can expose cables, busbars, transformers, and arc-flash boundaries to greater energy. Reliability and personnel safety are linked here: clearing a fault selectively is not just about continuity; it also limits damage and supports safer restoration.
Short-circuit calculations, protective-device coordination studies, and arc-flash assessments should be controlled as living engineering documents. IEC 60909 is commonly used for short-circuit current calculation, while protection relay requirements are addressed across relevant IEC 60255 documents. In North American facilities, practices may also be shaped by NFPA 70, NFPA 70E, IEEE guidance, insurance requirements, and local codes. None of these removes the need to verify actual settings, CT ratios, breaker trip units, interlocking logic, and installed one-line diagrams.
Industrial electrical assets rarely age uniformly. A site can contain recently upgraded drives beside original switchboards, legacy protection relays, undocumented cable modifications, and transformers that have experienced decades of thermal cycling. Peak load exposes these uneven conditions. Insulation degradation, contaminated insulating surfaces, weakened breaker mechanisms, corroded terminals, and depleted battery systems may all remain unnoticed until demand is high and switching duty increases.
Maintenance should be risk-based rather than calendar-only. Criticality matters, but so does failure consequence: a modest auxiliary feeder can halt an entire line if it supplies controls, cooling, lubrication, or safety interlocks. Condition monitoring is most valuable when it informs a decision. Recording transformer temperature without comparing it to load, ambient conditions, cooling status, dissolved-gas testing strategy where applicable, and historical trends leaves much of the diagnostic value unused.
Digital switchgear and connected monitoring devices can improve visibility, but data quality is not automatic. Metering points need a purpose, time stamps must align, sensor ranges must suit the expected condition, and alarm thresholds need engineering context. More alarms do not necessarily mean better reliability; they can obscure the few signals that indicate an approaching peak-load failure.
Many reliability events are enabled by ordinary operational decisions: deferred testing because production cannot stop, temporary generators connected without a full review, protection settings changed to avoid nuisance trips, or maintenance bypasses left in place after work is complete. These actions are understandable in a busy plant, but they alter system risk. Peak demand then turns a local workaround into a system event.
Restoration plans deserve special attention. After a trip or utility outage, bringing all loads back at once can be harder on the electrical system than normal production. Load-shedding priorities, restart delays, black-start capability, and the sequencing of motors, drives, heaters, and compressors should be tested against realistic scenarios. For critical operations, the question is not merely whether backup equipment starts. It is whether the chosen restart sequence maintains voltage and frequency adequately for the loads that must remain online.
The strongest review combines field evidence with current engineering models. Start by validating the one-line diagram and identifying all supply modes: normal utility operation, transformer ties, generator operation, UPS-supported sections, and any on-site generation. Then compare actual demand profiles with the assumptions used in equipment sizing and protection studies. A short monitoring campaign should be designed around known production peaks, switching events, and large-load starts rather than selected for convenience.
It is also useful to separate immediate operating risk from longer-term design risk. Loose connections, incorrect relay settings, blocked ventilation, and overloaded feeders may require prompt action. Harmonic mitigation, transformer replacement, feeder reinforcement, or a revised source architecture may need deeper study and capital planning. Mixing these categories can result in urgent maintenance being delayed by a large project, or a capital project being approved before the real failure mechanism is demonstrated.
GPEGM follows this intersection of electrical engineering and grid transition closely: not only the evolution of wide-bandgap devices in power conversion, high-efficiency motors, and intelligent switchgear, but also the practical question of how those technologies behave within existing industrial networks. Its Strategic Intelligence Center tracks the market and technical conditions influencing power equipment decisions, including material-market movements, grid modernization, distributed generation, and the standards landscape that shapes cross-border infrastructure work.
Peak-load resilience is ultimately built through verified margins, selective protection, measured power quality, maintained assets, and disciplined operating procedures. Before approving an upgrade or declaring a system adequate, confirm the operating scenario being tested, the applicable standards, the source configuration, and the evidence behind every critical assumption. That level of scrutiny is usually less costly than discovering the missing margin during the next production peak.
